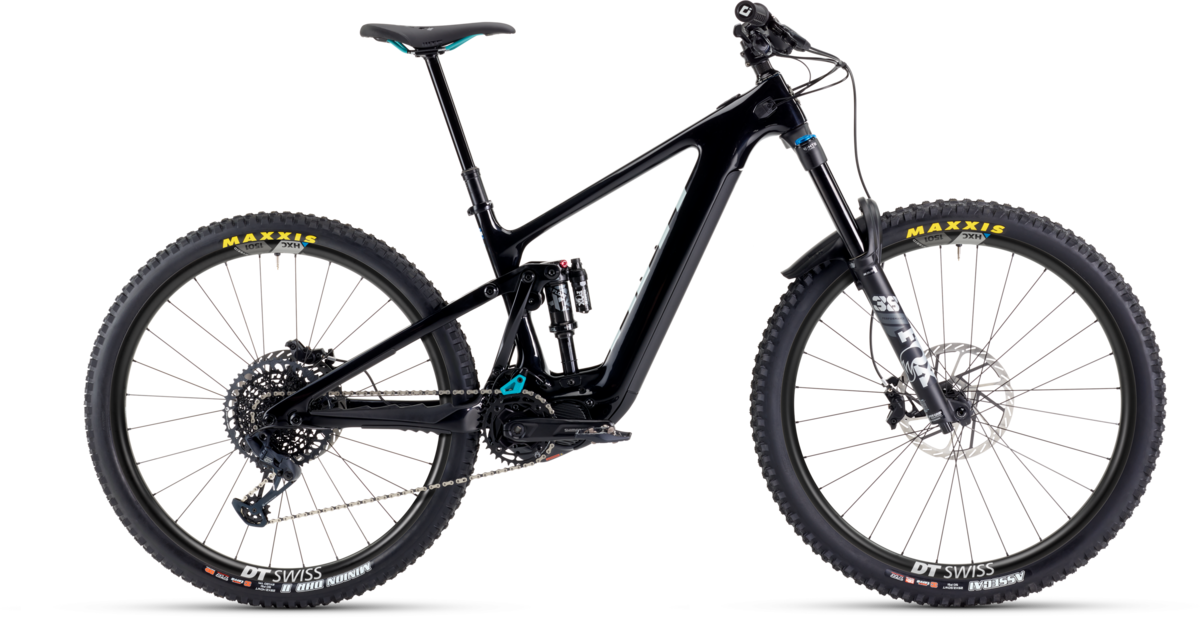

Yeti Cycles 160E C2 GX - HXC Wheels
$9,600.00
Details
We don't party until the race is over. So we took our time to design an e-mtb the way a yeti e-mtb has to be designed: ready to toe the line at ews-e races. meet the 160e: the world's first race specific e-mtb.
| SM | MD | LG | XL | |
|---|---|---|---|---|
| SEAT TUBE LENGTH | 380 | 410 | 450 | 495 |
| TOPTUBE LENGTH | 561 | 592 | 614 | 642 |
| HEADTUBE ANGLE | 64.5 | 64.5 | 64.5 | 64.5 |
| EFF. SEAT TUBE ANGLE | 78 | 78 | 78 | 78 |
| CHAINSTAY LENGTH | 446 | 446 | 446 | 446 |
| WHEELBASE | 1208.3 | 1239.7 | 1262.1 | 1291.9 |
| ESTIMATED BB HEIGHT | 350 | 350 | 350 | 350 |
| STANDOVER | 754 | 754 | 754 | 754 |
| HEADTUBE LENGTH | 95 | 98.3 | 103.8 | 114.9 |
| AXLE TO CROWN | 583.7 | 583.7 | 583.7 | 583.7 |
| OFFSET | 44 | 44 | 44 | 44 |
| STACK | 617 | 620 | 625 | 635 |
| REACH | 430 | 460 | 480 | 505 |
| FRONT CENTER | 762.3 | 793.7 | 816.1 | 845.9 |
| Small | 5’1” - 5’7” |
|---|---|
| Medium | 5’5” - 5’11” |
| Large | 5’10” - 6’3” |
| X-large | 6’1” - 6’7” |
Specs
| Frame | TURQ Series carbon fiber frame, Sixfinity suspension technology, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle. |
|---|---|
| Fork | FOX PERFORMANCE 38/170MM E-TUNE |
| Rear Shock | FOX PERFORMANCE FLOAT X |
| Wheels | DT SWISS H1900 30MM |
| Tires | MAXXIS ASSEGAI 2.5 EXO+ / MAXXIS MINION DHR II 2.4 DD |
| Crankset | SHIMANO 34T |
| Shifters | SRAM GX EAGLE |
| Rear Derailleur | SRAM GX EAGLE |
| Cassette/Freewheel | SRAM GX EAGLE 1275 10-52 |
| Chain | SRAM GX EAGLE |
| Brakes | SRAM CODE R |
| Rotors | SRAM HS2 220/SRAM HS2 220 |
| Handlebars | YETI CARBON 35X800MM |
| Tape/Grips | ODI ELITE PRO |
| Stem | BURGTEC ENDURO MK3 35X50MM |
| Headset | CANE CREEK 40 INTEGRATED |
| Seatpost | ONEUP DROPPER POST 31.6MM / SM: 180MM, MD: 210MM, LG-XL: 240MM |
| Saddle | SILVERADO CUSTOM |
| Motor | SHIMANO EP801 |
| Battery | SHIMANO 630Wh INTERNAL BATTERY |
| Controller/Display | SHIMANO EM800 |
| Charger | SHIMANO E6002 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Black / Small / 29-inch | 786044587300 | B25160ESMPBAPXC0287W0 |
| Black / Medium / 29-inch | 786044587065 | B25160EMDPBAPXC0287W0 |
| Black / Large / 29-inch | 786044586822 | B25160ELGPBAPXC0287W0 |
| Black / X-Large / 29-inch | 786044587546 | B25160EXLPBAPXC0287W0 |
| Rhino / Small / 29-inch | 786044587386 | B25160ESMPRIPXC0287W0 |
| Rhino / Medium / 29-inch | 786044587140 | B25160EMDPRIPXC0287W0 |
| Rhino / Large / 29-inch | 786044586907 | B25160ELGPRIPXC0287W0 |
| Rhino / X-Large / 29-inch | 786044587621 | B25160EXLPRIPXC0287W0 |
| Turquoise / Small / 29-inch | 786044587461 | B25160ESMPTUPXC0287W0 |
| Turquoise / Medium / 29-inch | 786044587225 | B25160EMDPTUPXC0287W0 |
| Turquoise / Large / 29-inch | 786044586983 | B25160ELGPTUPXC0287W0 |
| Turquoise / X-Large / 29-inch | 786044587706 | B25160EXLPTUPXC0287W0 |
