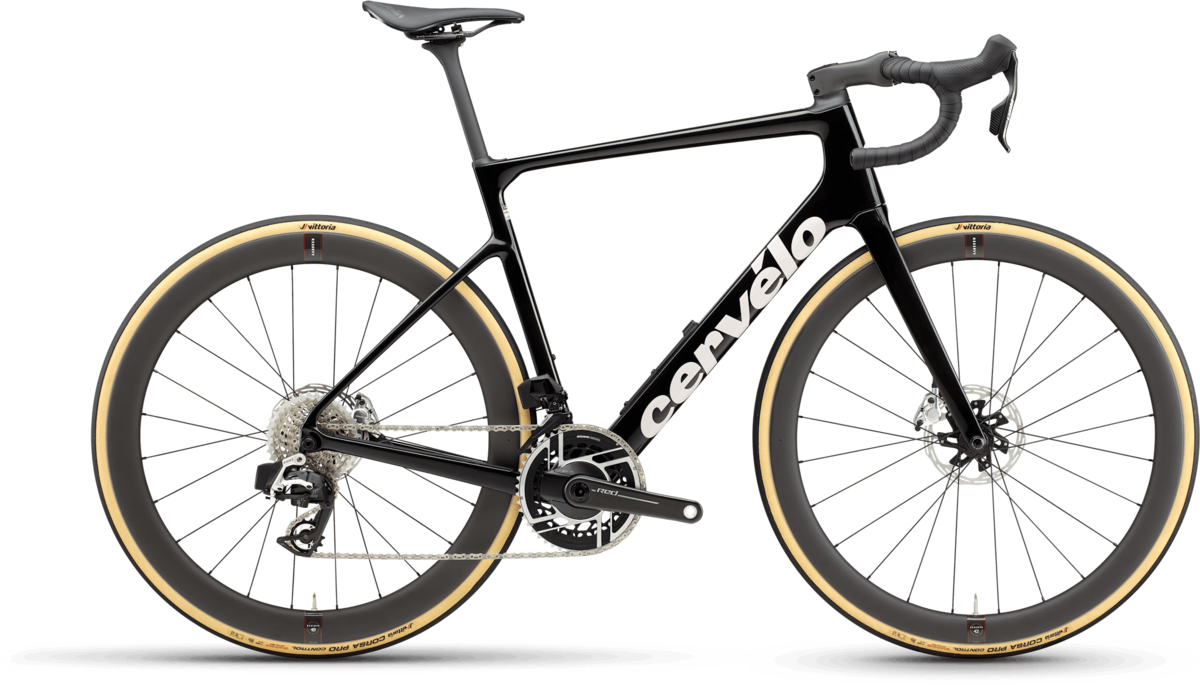

Cervelo Caledonia-5 Red AXS

Cervelo Caledonia-5 Red AXS
  • Color: Five Black
$12,000.00
Color: Five Black
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Sorry, this item is currently not available. Please contact us to check availability.

Details

FOR YOUR BIG, STUPID RIDES
On the fringes of cycling and triathlon, already endurance-oriented sports, there are athletes pushing their bodies and equipment to the limit. Ultra-distance, but ultra-fast. We call these Big, Stupid Rides, and since the introduction of the Caledonia in 2020, athletes around the world have been exploring just how big and just how stupid those rides can be. These athletes reach for the Caledonia-5. It’s built to handle long-distance, high-speed racing—with fit and handling geared toward comfort, but without sacrificing the Cervelo race bike feeling.

For the new Caledonia-5, we focused on improvements that would be meaningful for the people pushing it to its limits. The biggest thing you’ll notice is the addition of the in-frame storage first seen on P-Series. This isn’t designed to fit a burrito—there’s only room for a small multi-tool, tube, and a CO2 canister. Then we looked to comfort: The seat stays are dropped, similar to Aspero, which makes that rear triangle more acute, and more vertically flexible. At the same time, there’s a bit more downtube stiffness to maintain that pro-level responsiveness Caledonia is known for. You can still stuff some big tires (36mm) in there, and every bike comes with fender mounts.

Like all Cervélos, Caledonia-5 is UCI approved and carries a lifetime warranty. We make race bikes, and we make them to last.

IN-FRAME STORAGE
New this year on the Caledonia-5, the in-frame storage is designed for a tube, small multi-tool, and a CO2 canister. Out of sight, out of mind, until your tire makes the bad noise. The hatch is easily removable even with gloves on—just flip the lock and pull.

AERODYNAMICS
All Cervélo bikes are aero bikes. And when you’re on three days of panini and candy, running on fumes into Checkpoint One, you’ll appreciate the free speed. The completely internal housing and aero tube shapes team up to help you do battle against the wind.

REFINE AND ENHANCE
Caledonia-5 is meant for all-day riding, high-pace group rides, and routes featuring less-than-ideal tarmac.We kept all the good stuff, but made some key improvements. The bearing caps are now split so you can swap between the high and low bearing cap without bleeding the brakes if you need to make a fit change.

HAMMERHEAD-EQUIPPED
The Red AXS build comes with the all-new Hammerhead Karoo. The Karoo is the perfect companion for big stupid rides, and allows you to pick your preferred route surface (road, gravel) as you explore the limits of a “good idea.”

RESERVE 42|49
Developed and tested using Turbulent Aero technology, the 42|49 is designed for everything you do, providing all-day capability with aerodynamic sensibilities. Raced at events as varied as the Paris-Roubaix and the Giro D’Italia, the 42|49 wheels have a lifetime warranty supported by a no-fault crash replacement.

Sizes:
Frame Size485154565861
Reach | mm 360 369 378 387 396 405
Stack | mm 505 530 555 580 605 630
Head Tube Angle 70.5° 71.5° 72° 72° 72° 72°
Front Center | mm 580.5 582.7 592.5 609.5 627 644.1
Bottom Bracket Drop | mm 76.5 76.5 74 74 71.5 71.5
Head Tube Length | mm 89.5 110.3 136.3 162.6 191.5 217.8
Top Tube Length | mm 502 522 543 565 581 598
Seat Tube Angle 74.5° 74° 73.5° 73° 73° 73°
Standover Height | mm 701 743 775 798 824 847
Trail | mm 57.8 57.8 57.8 57.8 57.8 57.8
Wheel Size 700C 700C 700C 700C 700C 700C
Fork Offset | mm 60 54 51 51 51 51
Wheelbase | mm 983.3 985.6 996.3 1013.4 1031.8 1048.9
Chainstay Length | mm 415 415 415 415 415 415
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
48 150 - 160 4'11" - 5'3"
51 160 - 168 5'3" - 5'6"
54 168 - 176 5'6" - 5'9"
56 176 - 184 5'9" - 6'0
58 184 - 192 6'0" - 6'3"
61 192 - 200 6'3" - 6'7"

Specs

Fork Cervélo All-Carbon, Tapered Caledonia-5 Fork
Wheels Front Reserve 42, 25.5mm IW, Zipp 76, 24H, centerlock, tubeless compatible
Rear: Reserve 49, 24.5mm IW, Zipp 176,12x142mm, XDR freehub, 24H, centerlock, tubeless compatible
Axles Cervelo Aero Thru-Axles, 12x100/142
Tires Corsa Pro Control TLR 700x30mm
Bottom Bracket SRAM DUB Ceramic, BBright
Crankset SRAM Red AXS E1, 48/35T, DUB, with power meter
Shifters SRAM Red AXS, 12 speed
Front Derailleur SRAM Red AXS, 12 speed
Rear Derailleur SRAM Red AXS, 12 speed
Cassette/Freewheel SRAM Red, 10-36, 12 Speed
Chain SRAM Red, 12 speed
Brakes SRAM Red
Rotors SRAM Paceline X Centerlock
Handlebars Cervélo HB13 Carbon, 31.8mm clamp
Stem Cervélo ST31 Carbon
Headset FSA IS2 1-1/4 x 1-1/2
Seatpost Cervélo SP24 Carbon
Pedals Sold Separately
Saddle Selle Italia NOVUS BOOST EVO SuperFlow Carbon
Extras Cervelo Faceplate Front Computer/Accessory Mount, Removeable Fender Mounts, Hammerhead Karoo

* Subject to change without notice.

Videos

TwinHead technology

Part Numbers

Option UPC MPN
Five Black / 48cm / 700c 616663214816 0K0CFBRX1C48
Five Black / 51cm / 700c 616663214823 0K0CFBRX1C51
Five Black / 54cm / 700c 616663214830 0K0CFBRX1C54
Five Black / 56cm / 700c 616663214847 0K0CFBRX1C56
Five Black / 58cm / 700c 616663214854 0K0CFBRX1C58
Five Black / 61cm / 700c 616663214861 0K0CFBRX1C61
