Details

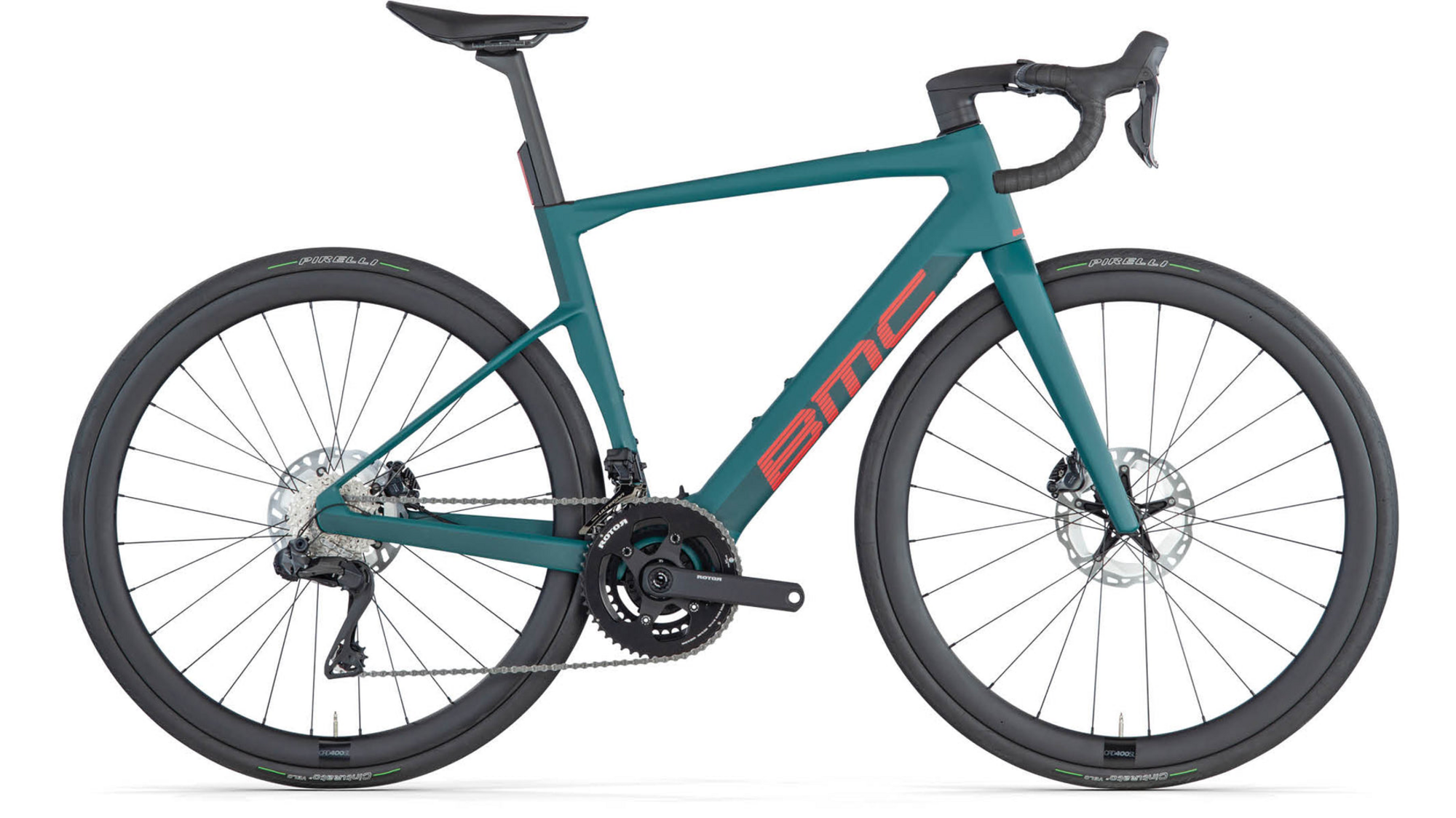

Everything that other e-road bikes aren’t: The Roadmachine 01 AMP ONE is uniquely engineered for high mileage with hidden power. Innovative and researched, we’re continuing the Roadmachine’s lineage by allying a technically refined design with the exceptionally light and quiet TQ-HPR50 drive unit. Seamlessly integrated into the Premium Carbon frame, everything adds up to make this a favorite for endurance: note the Shimano Ultegra Di2 groupset, ICS2 stem and CRD-400 SL wheels. In short, it’s an elevated BMC design, amplified to meet the timeless needs of the Roadmachine rider.
Hidden Power
Roadmachine 01 AMP extends your journey thanks to the revolutionary TQ-HPR50 drive unit. Powerful, light and compact, it is seamlessly integrated into the frame for an uncompromised look and natural ride feeling.
Fast and Forgiving
The most capable version of our Tuned Compliance Concept Endurance technology paves the way for a fast and forgiving ride. Take the edge of the roughest roads to push harder and ride further with the ultimate balance between comfort and performance.
Safety First
Light up your ride with integrated safety features. A custom BMC backlight is connected directly to the battery for long life and the computer mount offers easy installation of a front light.
ICS2 Stem
ICS2, with significant weight savings, high stiffness, clean aesthetics and integrated device mounts for the most popular devices.
Size | 47 | 51 | 54 | 56 | 58 | 61 |
---|---|---|---|---|---|---|
Reach (mm) | 370 | 379 | 383 | 388 | 393 | 398 |
Stack (mm) | 525 | 550 | 570 | 595 | 620 | 645 |
Bar Drop (mm) | 125 | 125 | 125 | 125 | 125 | 125 |
Bar Reach (mm) | 70 | 70 | 70 | 70 | 70 | 70 |
Bar Width (mm) | 400 | 420 | 420 | 420 | 420 | 440 |
BB Drop (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
Crank Length (mm) | 170 | 170 | 170 | 170 | 170 | 170 |
Fork Length (mm) | 380 | 380 | 380 | 380 | 380 | 380 |
Fork Rake (mm) | 50 | 50 | 45 | 45 | 45 | 45 |
Front Center (mm) | 579 | 596 | 594 | 607 | 620 | 633 |
Head Tube (mm) | 112 | 138 | 154 | 181 | 207 | 233 |
Head Tube Angle | 71.4 | 71.4 | 72.2 | 72.2 | 72.2 | 72.2 |
Rear Center (mm) | 420 | 420 | 420 | 420 | 420 | 420 |
Seat Angle | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
Seat Tube (mm) | 420 | 460 | 500 | 525 | 545 | 575 |
Seatpost Length (mm) | 230 | 280 | 280 | 280 | 280 | 330 |
Seatpost Offset (mm) | 15 | 15 | 15 | 15 | 15 | 15 |
Standover Height (mm) | 728 | 755 | 786 | 810 | 829 | 850 |
Stem Angle | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 |
Stem Length (mm) | 90 | 90 | 100 | 110 | 110 | 110 |
Top Tube (mm) | 519 | 535 | 544 | 556 | 568 | 581 |
Trail (mm) | 63 | 63 | 63 | 63 | 63 | 63 |
Wheelbase (mm) | 987 | 1005 | 1002 | 1015 | 1028 | 1041 |
Size | Rider Height | Rider Height (in) |
---|---|---|
47 | < 162 | < 5'3" |
51 | 162 - 174 | 5'3" - 5'8" |
54 | 172 - 180 | 5'7" - 5'11" |
56 | 178 - 186 | 5'10" - 6'1" |
58 | 184 - 192 | 6'0" - 6'3" |
61 | > 190 | > 6'3" |
Specs
Motor | TQ-HPR50 Drive Unit |
---|---|
Pedals | Sold Separately |
Battery | TQ 360 Wh Battery |
Charger | TQ HPR-50 4A Charger |
Controller/Display | TQ Display | 2" O-LED | Bluetooth / ANT+ |
Fork | Roadmachine 01 AMP Premium Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Flat Mount Disc | 12x100mm Thru-Axle |
Hubs | CRD-400 SL |
Rims | CRD-400 SL Carbon - Tubeless Ready - 40mm |
Stem | BMC ICS2 - Integrated Cockpit System Technology |
Chain | SHIMANO CN-M8100 12spd |
Frame | Roadmachine 01 AMP Premium Carbon with Tuned Compliance Concept Endurance | Integrated Battery | Integrated Rear Light | Internal Cable Routing | ICS Technology Stealth Cable Routing | Fender Mounts | Flat Mount Disc | 12x142mm Thru-Axle |
Tires | Pirelli Cinturato Velo TLR, 32mm |
Brakes | SHIMANO Ultegra BR-R8170 |
Saddle | Fizik Argo Tempo R1 (150mm) |
Wheels | CRD-400 SL Carbon - Tubeless Ready - 40mm |
Crankset | Rotor eVegast 50-34T |
Seatpost | Roadmachine 01 AMP Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible |
Shifters | SHIMANO Ultegra Di2 ST-R8170 12spd |
Handlebars | BMC RAB 02, Ergo Top Shape, Compact Bend |
Brake Levers | SHIMANO Ultegra BR-R8170 |
Rear Derailleur | SHIMANO Ultegra Di2 RD-R8150 12spd |
Front Derailleur | SHIMANO Ultegra Di2 FD-R8150 |
Accessories & Extras | Integrated Rear Light |
Cassette/Freewheel | SHIMANO Ultegra 12spd 11-30T |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Green/Red / 54cm / 700c | 7630027887754 | 30002731 |
Green/Red / 56cm / 700c | 7630027887747 | 30002732 |
Green/Red / 61cm / 700c | 7630027887921 | 30002734 |
Green/Red / 51cm / 700c | 7630027887761 | 30002730 |
Green/Red / 47cm / 700c | 7630027887778 | 30002729 |
Green/Red / 58cm / 700c | 7630027887839 | 30002733 |
