Super Veloce, Super Versatile.
While improving upon past success is never easy, taking an award-winning and universally lauded platform and making it not only faster but better proved to be a herculean task. Basso, thanks to its competitive nature and desire to evolve, enjoyed the challenge and the end result demonstrates the effort, attention to detail and passion that went into this project.
A perfect blend of carryover tech and new design make for a better, best Basso.

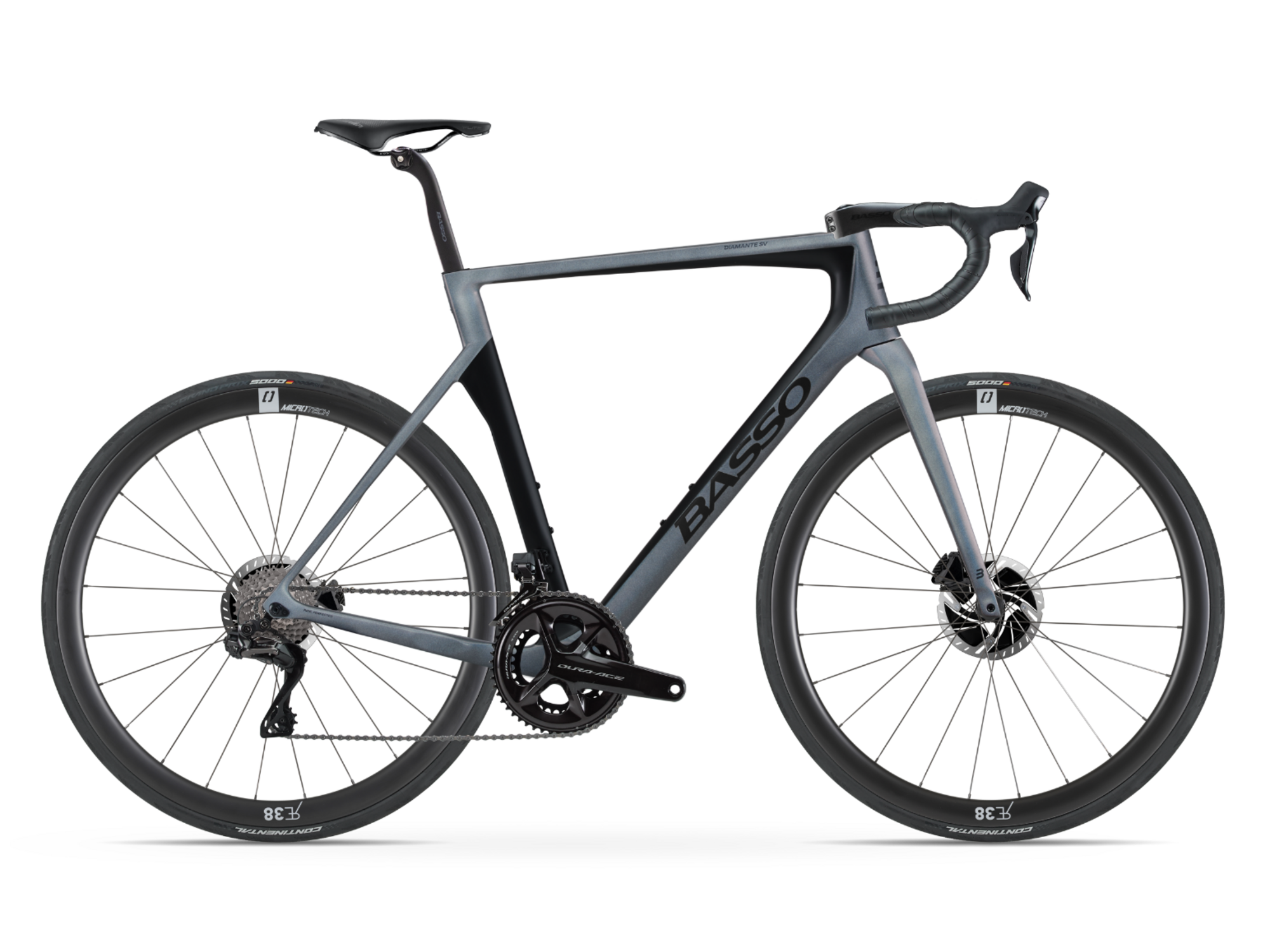

Introducing the Diamante SV.
Size specific construction
Diamante SV’s carbon layup, tube diameters and construction vary in function with size. From 45 to 63, you will experience the same perfected riding quality.
Fork Performance design
Vertically compliant, horizontally rigid to confer unique handling precision and comfort on rough surfaces.
Rear triangle efficiency
Lower profile stays for rear triangle reactiveness.
Integrated Handlebar Levita
The Diamante SV tip for unprecedented handling: stiff, light, and ergonomic. Levita redefines the concept of riding precision in a heap of technology and aesthetic purity.
3B Clamp system Gen 2
A totally hidden fixing solution that is invisible on the frame, intertwining technological and aesthetic innovation.
The result is a lightweight, invisible and strong integrated system with three screws, which has been further implemented through the vulcanization of the steel plank. This Basso solution gives the 3B system an anti-vibration function, which improves the riding experience by elevating comfort on uneven and bumpy surfaces.
FRAME SIZE | 45 | 48 | 51 | 53 | 56 | 58 | 61 | 63 |
---|---|---|---|---|---|---|---|---|
SEAT TUBE | 450 mm | 480 mm | 510 mm | 530 mm | 560 mm | 580 mm | 610 mm | 630 mm |
TOP TUBE | 505 mm | 515 mm | 525 mm | 545 mm | 560 mm | 575 mm | 590 mm | 605 mm |
REACH | 375 mm | 375 mm | 378 mm | 384 mm | 386 mm | 389 mm | 390 mm | 398 mm |
STACK | 523 mm | 523 mm | 548 mm | 560 mm | 587 mm | 610 mm | 634 mm | 658 mm |
SEAT TUBE ANGLE | 76° | 75° | 75° | 74° | 73,5° | 73° | 72,5° | 72,5° |
STEERING TUBE ANGLE | 71,8° | 71,8° | 72° | 72,3° | 73,5° | 73,5° | 74° | 74,5° |
CHAIN-STAY LENGTH | 404 mm | 404 mm | 404 mm | 404 mm | 406 mm | 410 mm | 410 mm | 410 mm |
BB TO FORK LENGTH | 574 mm | 574 mm | 583 mm | 592 mm | 590 mm | 599 mm | 602 mm | 602 mm |
HEAD TUBE | 101 mm | 101 mm | 126 mm | 138 mm | 156 mm | 180 mm | 203 mm | 226 mm |
HANDLEBAR WIDTH C/C | 400 mm | 400 mm | 420 mm | 420 mm | 420 mm | 420 mm | 440 mm | 440 mm |
STEM LENGTH | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 120 mm | 120 mm | 120 mm |
Specs
Wheels | RE38 DISC |
---|---|
Crankset | 172.5 |
Chainrings | 50-34 |
Cassette/Freewheel | 11-34 |
Fork | Diamante SV carbon monocoque construction 100% 3K Torayca HMCF T1000 and T800 |
Chain | Shimano Dura-Ace 12v |
Frame | Diamante SV carbon monocoque construction 100% 3K Torayca HMCF T1000 and T800 |
Tires | Continental GP5000 – 700 x 28 mm Tires |
Brakes | Shimano Dura-Ace |
Rotors | Shimano Dura-Ace 160 mm |
Saddle | Selle Italia Flite Boost SuperFlow Carbon Saddle |
Headset | Microtech Integrated Cables |
Seatpost | Diamante SV – 15 mm Seatpost |
Shifters | Shimano Dura-Ace DI2 Dual Control 12 v |
Handlebars | Levita integrated handlebar |
Tape/Grips | The Ribbon Road Handlebar Tape |
Bottom Bracket | Shimano Dura-Ace |
Rear Derailleur | Shimano Dura-Ace DI2 12 v |
Front Derailleur | Shimano Dura-Ace DI2 2x12 v |
Accessories & Extras | Integra Standard Head Unit Mount |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Emerald Green / 63cm | 8054042656642 | 211SVB-82-63-420234RE |
Opal White / 51cm | 8054042654228 | 211SVB-98-51-420234RE |
Aurora / 61cm | 8054042654990 | 211SVB-84-61-420234RE |
Aurora / 51cm | 8055136086178 | 211SVB-84-51-420234RE |
Opal White / 53cm | 8053689742527 | 211SVB-98-53-420234RE |
Emerald Green / 61cm | 8054042656888 | 211SVB-82-61-420234RE |
Opal White / 56cm | 8054042653870 | 211SVB-98-56-420234RE |
Emerald Green / 58cm | 8054042657120 | 211SVB-82-58-420234RE |
Emerald Green / 51cm | 8054042657892 | 211SVB-82-51-420234RE |
Emerald Green / 48cm | 8054042658165 | 211SVB-82-48-420234RE |
Emerald Green / 53cm | 8054042657625 | 211SVB-82-53-420234RE |
Aurora / 48cm | 8054042656130 | 211SVB-84-48-420234RE |
Enigma Black / 51cm | 8055136083900 | 211SVB-11-51-420234RE |
Aurora / 45cm | 8054042656383 | 211SVB-84-45-420234RE |
Enigma Black / 53cm | 8055136083894 | 211SVB-11-53-420234RE |
Opal White / 45cm | 8054042654587 | 211SVB-98-45-420234RE |
Aurora / 58cm | 8055136086321 | 211SVB-84-58-420234RE |
Enigma Black / 56cm | 8055136083887 | 211SVB-11-56-420234RE |
Emerald Green / 56cm | 8054042657366 | 211SVB-82-56-420234RE |
Enigma Black / 58cm | 8054042659063 | 211SVB-11-58-420234RE |
Aurora / 63cm | 8054042654761 | 211SVB-84-63-420234RE |
Enigma Black / 61cm | 8054042658882 | 211SVB-11-61-420234RE |
Opal White / 61cm | 8054042653511 | 211SVB-98-61-420234RE |
Enigma Black / 48cm | 8054042659735 | 211SVB-11-48-420234RE |
Opal White / 58cm | 8054042653696 | 211SVB-98-58-420234RE |
Aurora / 53cm | 8055136086185 | 211SVB-84-53-420234RE |
Enigma Black / 63cm | 8054042658707 | 211SVB-11-63-420234RE |
Emerald Green / 45cm | 8054042658431 | 211SVB-82-45-420234RE |
Enigma Black / 45cm | 8054042659919 | 211SVB-11-45-420234RE |
Opal White / 63cm | 8054042653337 | 211SVB-98-63-420234RE |
Aurora / 56cm | 8055136086192 | 211SVB-84-56-420234RE |
Opal White / 48cm | 8054042654402 | 211SVB-98-48-420234RE |
